DEWALT 60V MAX* Brushless Cordless Quick-Change Stud and Joist Drill With E-CLUTCH® System Kit

DEWALT 60V MAX* Brushless Cordless Quick-Change Stud and Joist Drill With E-CLUTCH® System Kit


*Stand alone Dewalt Power Tools excluded from promotions.

*Does not fit in the DeWALT Toolbox

  • DEWALT anti-rotation E-CLUTCH System, offers technology capable of detecting the motion of the tool and shuts it down if necessary, in a bind up situation. The red indicator led illuminates when the E-CLUTCH System is engaged
  • 7/16 in. Hex Quick-Change chuck for fast and easy bit changes
  • 2-speed settings (0 RPM to 400 RPM/0 RPM to 1320 RPM) to match appropriate speed to the application

Product Description

Product Details

Product Specs

Complete a wide range of large drilling applications with this 60V MAX* Quick Change Stud and Joist Drill. Engineered with safety in mind, this powerful tool features anti-rotation E-CLUTCH® technology that detects the motion of the tool and shuts it down if necessary. For convenience, this kit includes (1) FLEXVOLT® 20V/60V MAX* battery, a charger, and a durable storage bag for portability.

Trademark Notice

POWER PLANTER and the Power Planter design mark are registered trademarks of Power Planter, Inc.

DEWALT and its yellow and black color combination are registered trademarks of The Black & Decker Corporation. The Black & Decker Corporation and DEWALT have not manufactured or endorsed any Power Planter products or their use with any DEWALT products.

Safety Notice

To reduce risk of injury, user must read DEWALT instruction manual before operating DEWALT product. Always use ANSI Z87.1 eye protection and proper respiratory protection. Keep hands and body clear of sharp edges and moving parts.

Additional Features

  • Quick-shift speed selector allows the user to easily change speeds without having to feather the trigger
  • Magnesium gear case reduces weight while maintaining jobsite durability
  • Power of corded with the freedom of cordless
  • Tool Connect tag ready. Installing a DEWALT tool tag allows for tracking and locating of the drill using the DEWALT Tool Connect app
  • Up to 4-5/8 in. self-feed bits into wood
  • Up to 6-1/4 in. hole saws into wood


Rough-in work for plumbing/electrical

Core Drilling

Drilling large holes into wood

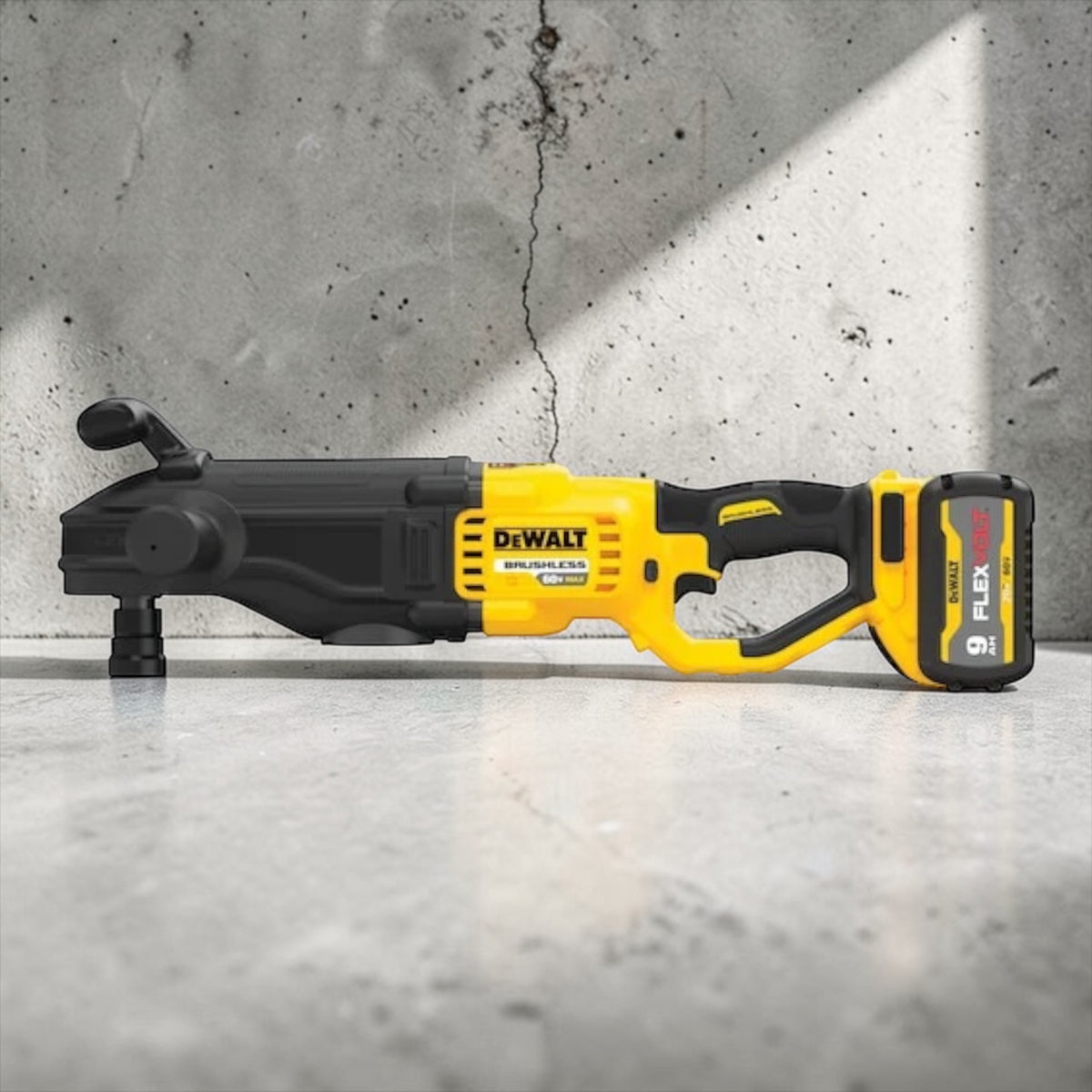

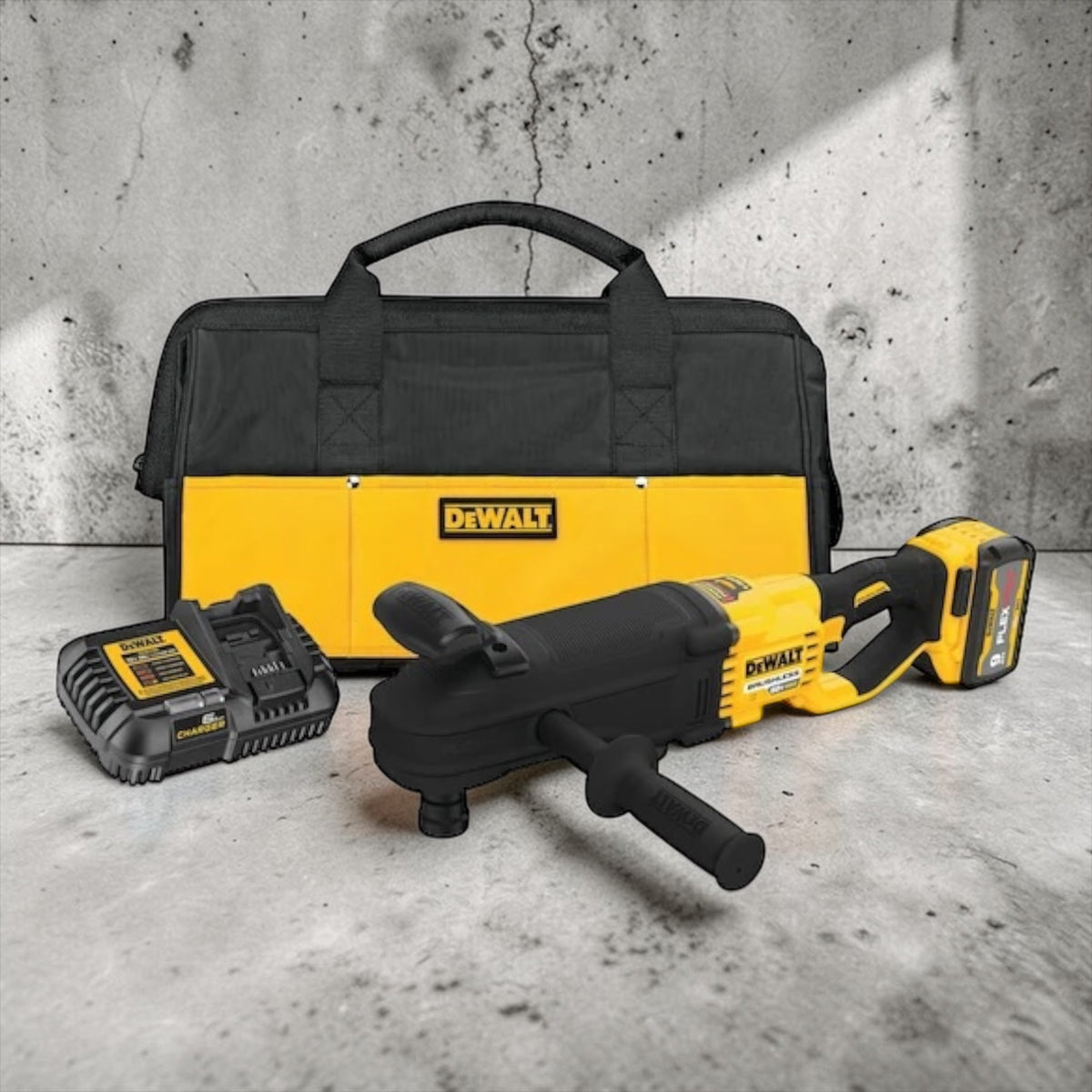

  • (1) DCD471 60V MAX* Brushless Quick-Change Stud and Joist Drill
  • (1) Charger
  • (1) DCB609 FLEXVOLT® 20V/60V MAX* 3Ah Battery


Battery Capacity
9 Ah
Battery Chemistry
Lithium Ion
Battery Included
Battery Type
Lithium Ion
Battery Voltage
60 V
Chuck size
7/16 in
Clutch Mechanism
E-CLUTCH® System
Black, Yellow
Led light
No Load Speed (RPM)
0 RPM to 400 RPM/0 RPM to 1320 RPM
Nominal Maximum RPM
Number of Speed Settings
300 W
Power Input
800 W
Power Source
Product Height
5 in
Product Length
24 in
Product Weight
14 lbs
Product Width
4 in
Secondary Handle
1300 rpm
Supplied in Kitbox
Tool Length
24 in
Uncertainty K1 (Vibration)
Uncertainty K2 (Vibration)
